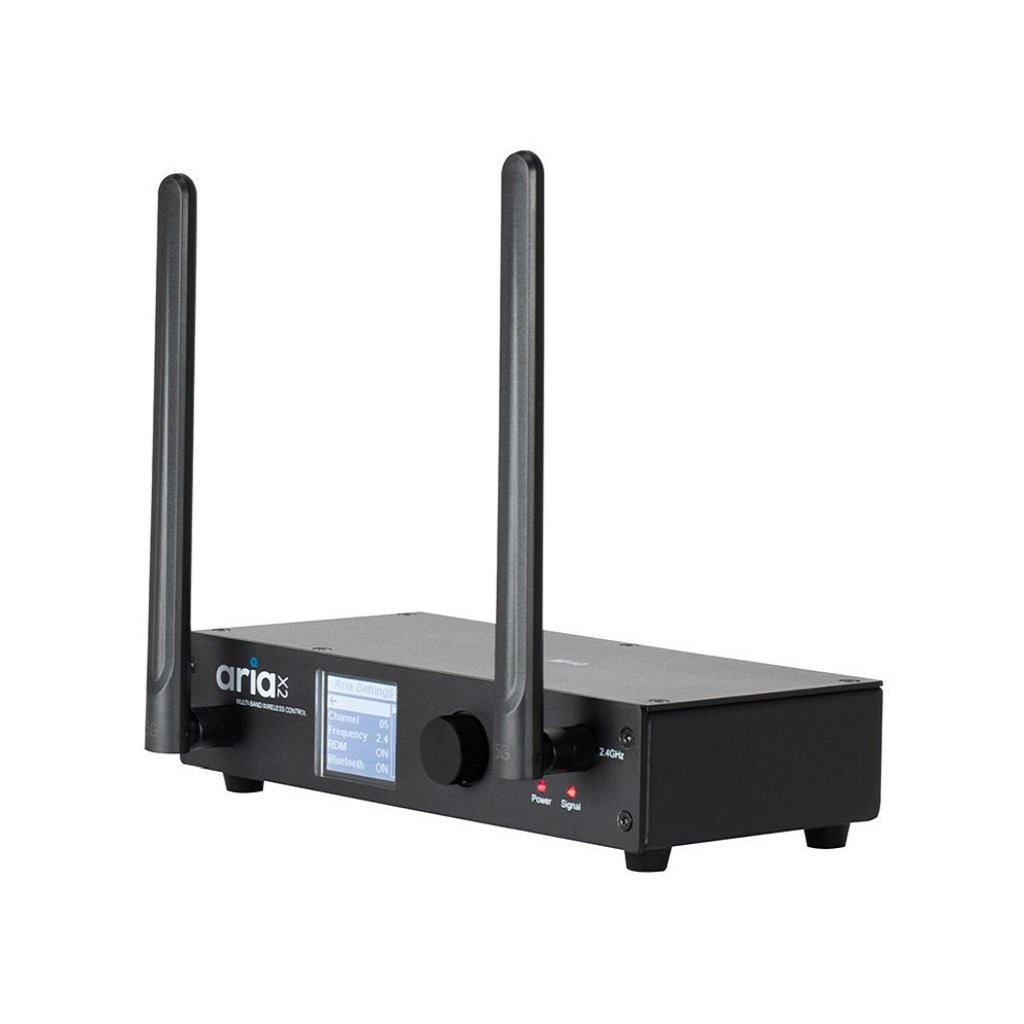

The ADJ Aria X2 sports the following features:

• Single DMX Universe
• Sub-GHz, 2.4 GHz WiFi and Bluetooth
• Configuration via Aria X2 BLE app or front panel
• Wireless to DMX or DMX to Wireless

PROTOCOLS:

• DMX
• RDM (Planned for future software release)
• Proprietary 802.15.4
  • Aria X2 Mesh Protocol (Planned for future software release)
• Bluetooth 5.2 (BLE)
• Aria X2 Serial Protocol
  • This is our proprietary serial protocol for communicating with a variety of fixtures.

RF CHARACTERISTICS:

• Frequency range
  • 2404-2480 MHz
  • 863-870 MHz (EU)
  • 902-928 MHz (US)
• Radio module: Aria X2
• Interference mitigation
  • CSMA
  • Adaptive frequency hopping (on the roadmap)
  • OTA updates

Standards:

• HEALTH
  • EN IEC 62311:2020
  • EN50665:2017
  • BS EN IEC 62311:2020
  • BS EN 50665:2017
• SAFETY
  • EN IEC 62368-1: 2020+A11:2020
  • BS EN IEC 62368-1: 2020+A11:2020
• EMC
  • ETSI EN 301 489-1 V2.2.3 (2019-11)
  • ETSI EN 301 489-3 V2.3.2 (2023-01)
  • ETSI EN 301 489-17 V3.2.4 (2020-09)
  • EN 55032:2015/A1:2020
  • EN 55035:2017/A11:2020
  • EN 61000-3-3:2013/A2:2021
  • EN IEC 61000-3-2:2019/A1:2021
  • BS EN 55032:2015/A1:2020
  • BS EN 55035:2017/A11:2020
  • BS EN 61000-3-3:2013/A2:2021
  • BS EN IEC 61000-3-2:2019/A1:2021
• RADIO
  • EN 300 220-1 V 3.1.1 (2017-02)
  • EN 300 220-2 V 3.2.1 (2018-06)
  • ETSI EN 300 328 V2.2.2 (2019-07)

CONNECTIONS:

• Antenna: 5G JT SMA
• DMX: 5-pin XLR Input and Output
• DC: 2.5mm/5.5mm Barrel connector
• IP65 Locking Power Input and Output

ELECTRIAL:

• AC100-240V 50/60Hz
• Power Consumption: 2W
• Power Fuse: T1.25A/250V. (5 x 20mm)

PHYSICAL:

• IP20 Aluminum / Metal enclosure
• Front panel digital screen and rotary knob
• M10 and M12 Threads
• Safety Eyelet
• Max ambient operating temp: 113°F (45°C)
• Max operating humidity: <75%
• Storage temperature: 77°F (25°C)
• Rack and wall mount accessories

DIMENSIONS

• Length: 6.46″ (163.95mm)
• Width: 8.48″ (215.30mm)
• Height: 1.66″ (42mm)
• 2.7lbs (1.23kgs.)

ADJ Aria X2 Transceiver available for rental. Contact us for pricing!
