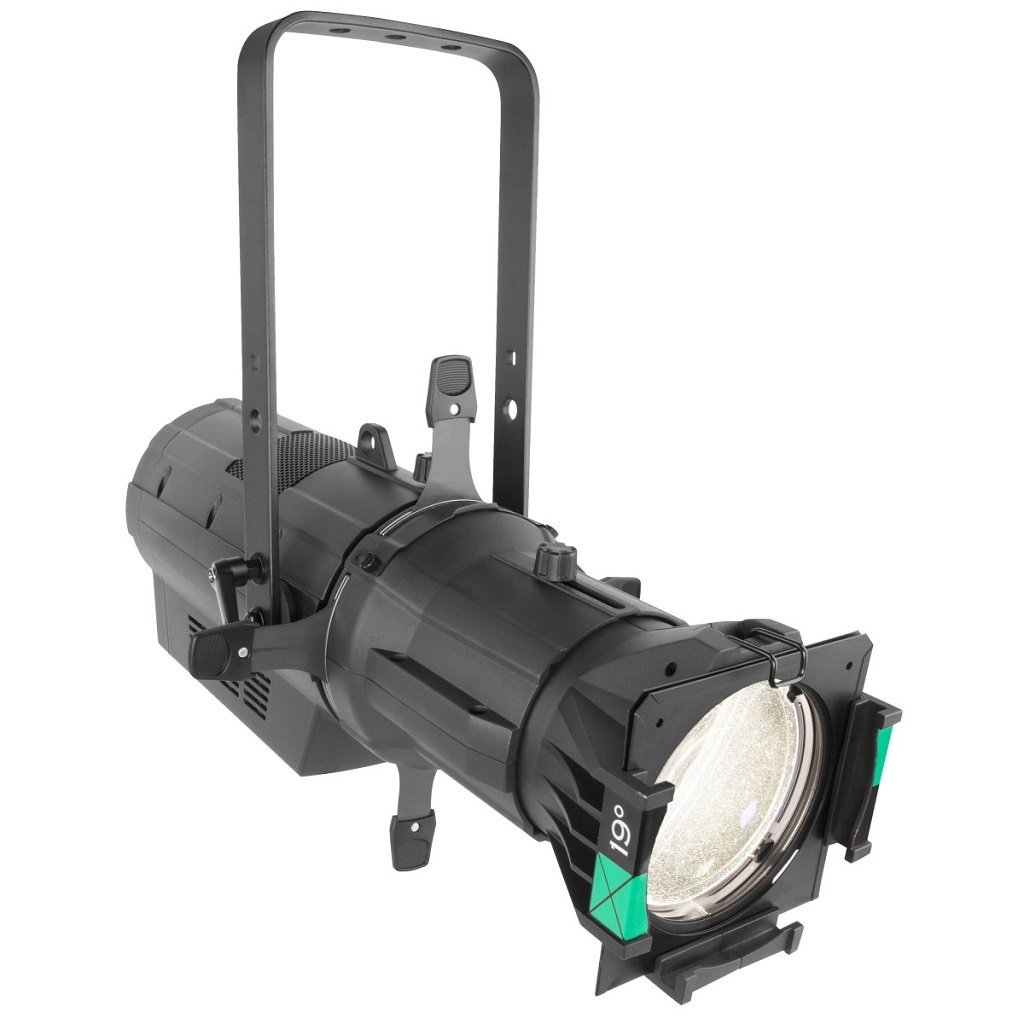

The Chauvet Ovation E-260WW IP LED Leko takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Our standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750 W HPL. This groundbreaking ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming. We also have non-IP rated versions available.
Chauvet Ovation E-260WW
TECH SPECS
The Chauvet Ovation E-260WW IP LED Leko sports the following features:
SOURCE
- Light Source: 1 LED (WW) 202 W, (3.6 A), 3149 K, 50,000 hours life expectancy
- Color Temperature (at full): 3149
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30 Hz
- Color Temperature Presets: No
- Dim Modes: 4Built-in
- Automated Programs: Yes
DIMENSIONS
- Dimensions (fixture only): 19.49 x 11.14 x 18.42 in (495 x 342 x 506 mm)
- Weight (fixture only): 20.2 (9.2 kg)
CONNECTIONS
- Power Connection: Edison (local) plug to True1
- Power Input: True1
- Power Output: True1
- Data Connectors: 5-pin XLR Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 2, 3, 4 or 7
- Modes/Personalities: 4 personalities (2, 3, 4, 7)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
- Power and Current: 221 W, 1.85A @ 120 V, 60 Hz
- Power and Current: 215 W, 1.11 A @ 208 V, 60 Hz
- Power and Current: 213 W, 1.01 A @ 230 V, 50 Hz
CERTIFICATIONS
- CE, MET IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Chauvet Ovation E-260WW IP LED Leko available for rental. Contact us for pricing!
