The Elation Cuepix Panel 5 features (25) long life 30W 3-in-1 RGB COB LEDs, a 60° beam angle, RDM (Remote Device Management), individual control of each COB module, variable / selectable dimming curves, strobe and zone chase effects, flicker free operation for TV and Film, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX and powerCon in/out connections, LCD menu display with 4 button control panel, integrated rigging points and optional rigging bracket available, and a multi-voltage universal auto switching power supply (100-250v).

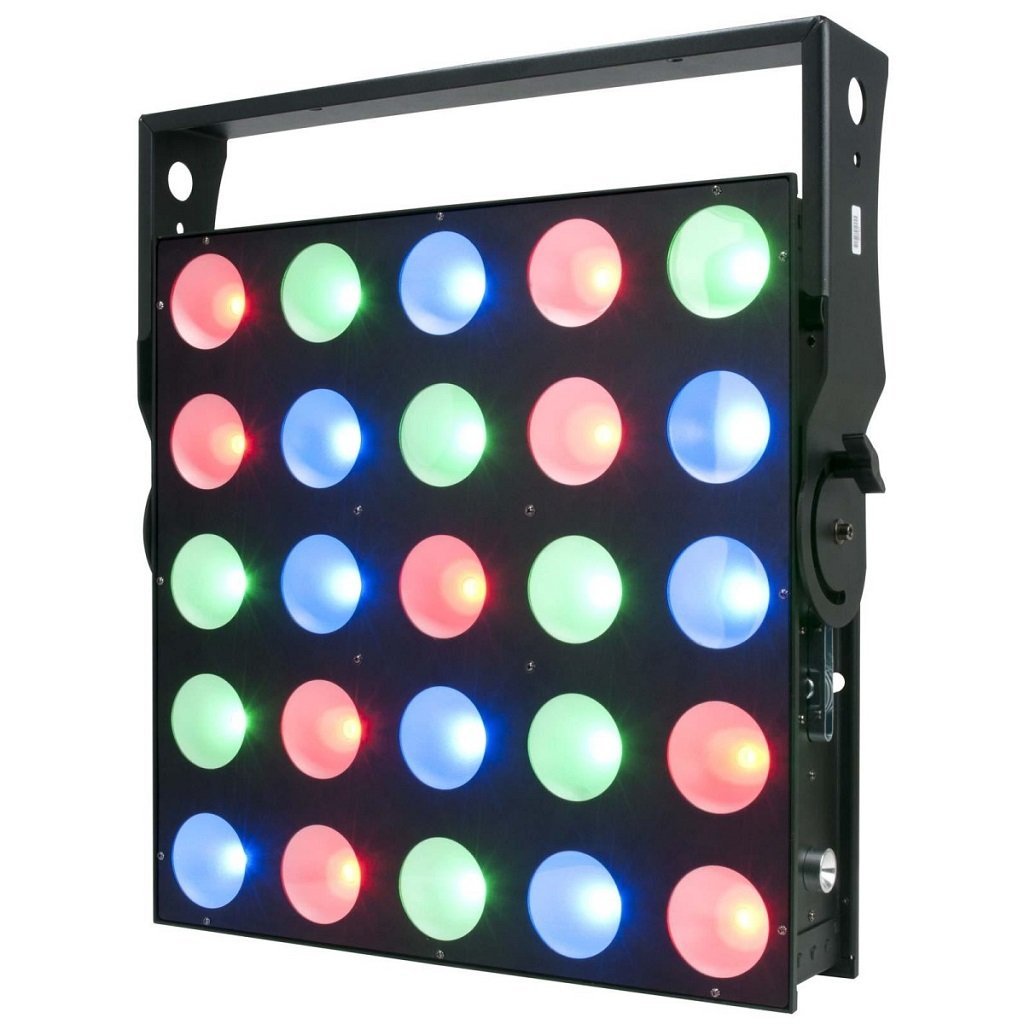

Elation Cuepix Panel 5
TECH SPECS
The Elation Cuepix Panel 5 sports the following features:
- High Power Long Life 3-in-1 RGB COB LEDs
- 60° Beam Angle – 80° Field Angle
- Color Mixing + Individual Control of Each COB Module
- Dimming : 0% – 100% of Each COB Module
- RDM (Remote Device Management)
- Flicker FREE Operation for TV and FILM
- Stand Alone Operation with Master/Slave Function
- Integrated Rigging Points and Optional Rigging Bracket
SOURCE
- (25) 30W 3-in-1 RGB COB LEDs100,000 Hour Average Life
PHOTOMETRIC DATA
- 3310 Max LUX (307 fc) @1M (Red LEDs)
- 3720 Max LUX (346 fc) @1M (Green LEDs)
- 5870 Max LUX (545 fc) @1M (Blue LEDs)
- 15,490 Max LUX (1439 fc) @1M (Full ON)
EFFECTS
- Variable and Selectable Dimming Curves
- Strobe and Zone Chase Effects
CONTROL
- 5 DMX Channel Modes (3 / 6 / 7 / 75 / 79)4 Button Control Panel and LCD Menu Display
- RDM
CONNECTIONS
- DMX via XLR-3 and XLR-5 In/Out
- Powercon In/Out
DIMENSIONS
- Length: 24.8″ (630 mm)
- Width: 5.1″ (130 mm)
- Vertical Height: 25.6″ (650 mm)
- Weight: 36.4 lbs. (16.5 kg)
ELECTRICAL
- AC 100-240V – 50/60Hz750W Max Power Consumption-14°F to 113°F (-10°C to 45°C)
Elation Cuepix Panel 5 available for rental. Contact us for pricing!
