The Elation eNode8 Pro is a 1U rack space 8-universe Ethernet-DMX node which supports Art-Net, sACN, and RDM compatible DMX control systems utilizing 2 RJ45 ethernet auto-switching 10/100Mbps inputs and 8 5pin DMX ports which can be configured as inputs or outputs. Features include DMX bilateral conversion support, sACN auto-detection, variable MAC address assignable, auto MDI/MDIX, DMX splitter function (1 input / 3 outputs or 1A input / 3A outputs and 1B input / 3B outputs), broadcast and backup modes, built-in Ethernet repeater switch, an LCD control menu display and LED indicators, push button configuration encoder wheel, a lightweight die-cast aluminum housing, and includes standard 19-inch rack mount ears. We offer both individual unit rentals as well as rack mounted options.

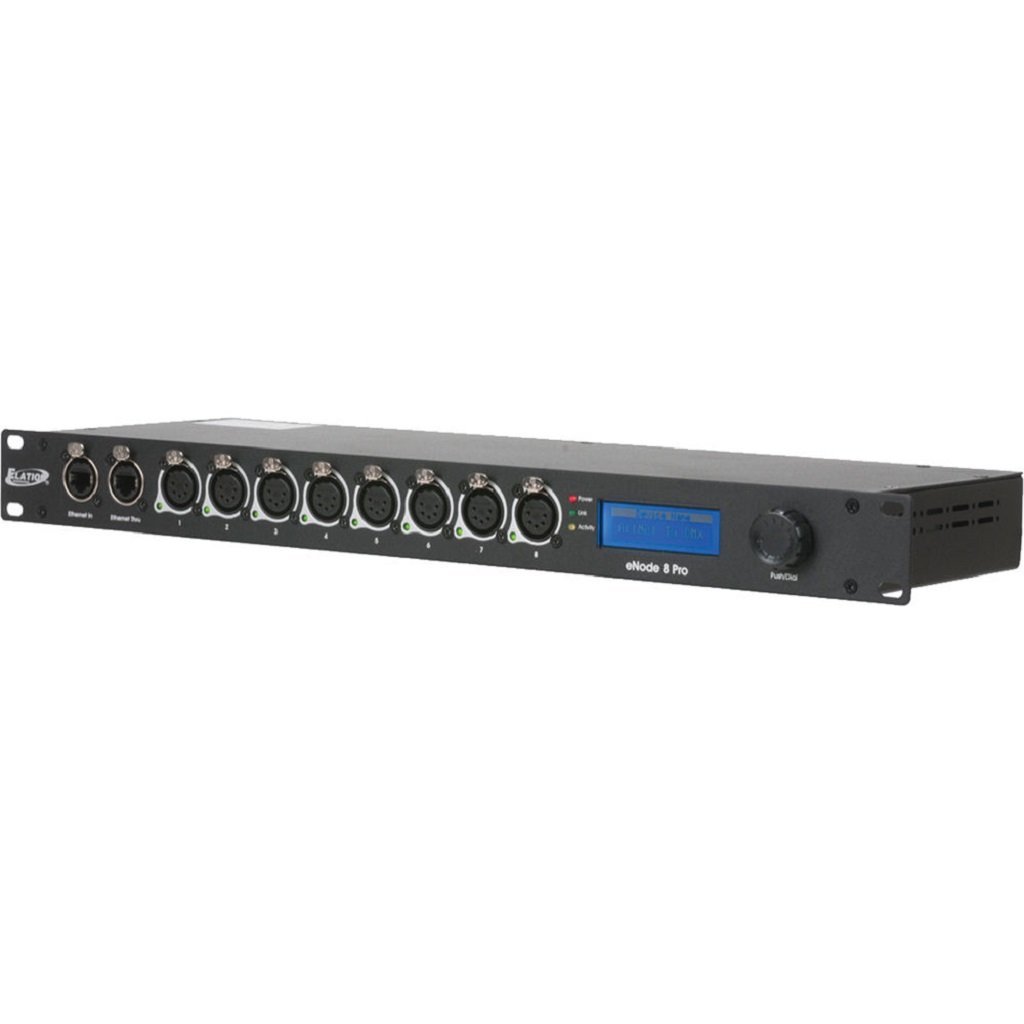

Elation eNode8 Pro
TECH SPECS
The Elation eNode8 Pro sports the following features:
OVERVIEW
- 8-Universe Ethernet-DMX Node
- DMX, RDM, Art-Net, and sACN Protocol Support
- DMX Bilateral Conversion Support Compact
- sACN Auto-Detection
- Variable MAC Address Assignable
- Auto MDI/MDIX
- DMX Splitter Function (1 Input / 3 Outputs)
- Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
- Backup Mode
- 1U Rack Space Mountable
CONTROL
- 8-Universes
- DMX, RDM, Art-Net, and sACN Protocol Support
- DMX Bilateral Conversion
- sACN Auto-Detection
- Auto MDI/MDIX
- DMX Splitter Function (1 Input / 3 Outputs)
- Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
- Backup Mode
- Push Button Configuration Encoder Wheel
- LCD Control Menu Display & LED Indicators
- (2) RJ45 ethernet TCP/IP 10/100M Inputs
- (8) Universal 5pin DMX Ports (can be set as Input or Output)
DIMENSIONS
- Length: 19.0” (482mm)
- Width: 6.3” (160mm)
- Vertical Height: 1.7” (44mm)
- Weight: 4.6 lbs. (2.1kg)
ELECTRICAL
- AC 100-240V – 50/60Hz
- 7W Max Power Consumption
- 35.6°F (2°C) to 113°F (45°C)
Elation eNode8 Pro available for rental. Contact us for pricing!
