The Elaton Magma Prime is a water-based fazer with advanced technology providing a high volume dry haze effect with low fluid consumption. The new HPA (high pressure air) pump technology reduces the risk of heater clogging. Features includes an easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.

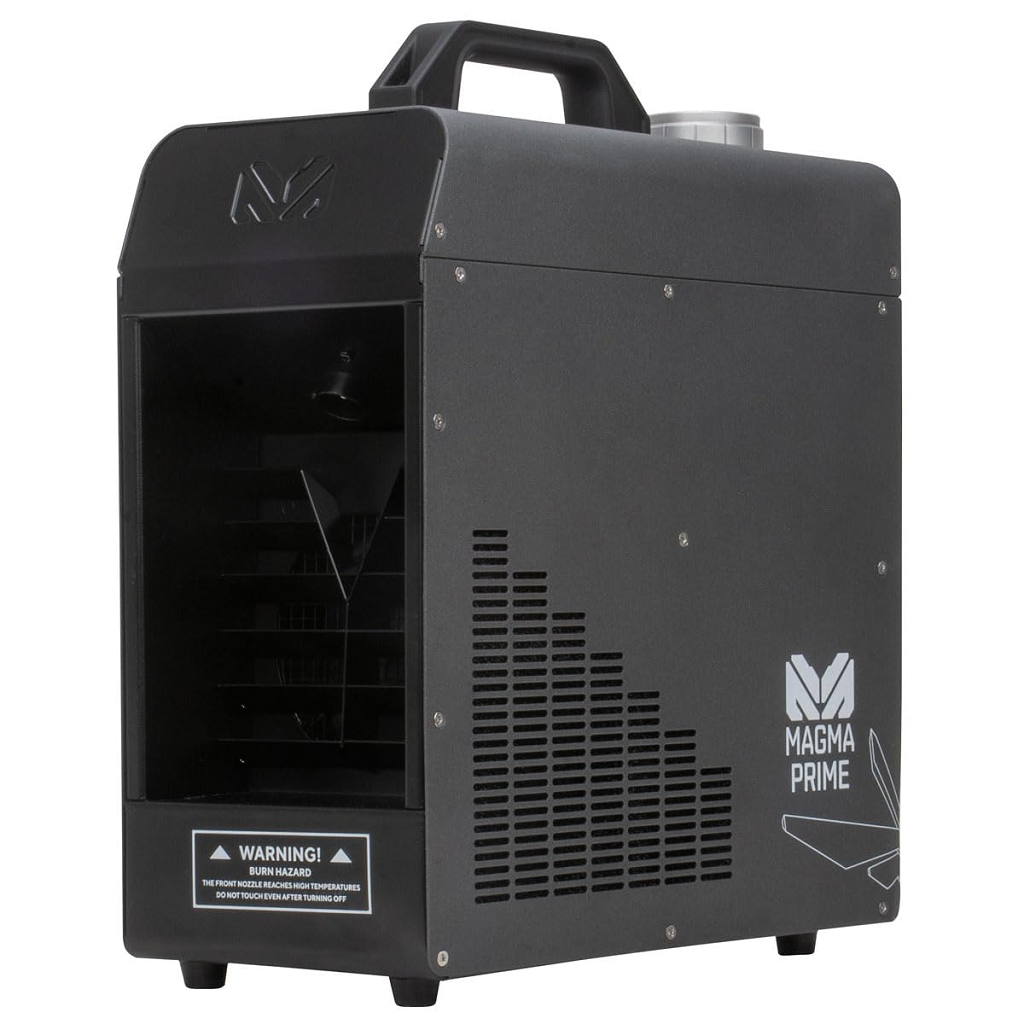

Elation Magma Prime
TECH SPECS
The Elation Magma Prime sports the following features:
PERFORMANCE
- Rated Power: 700w
- Max Output: 4,000 CFM (cu ft/min.) (113 m3/min)
- Ready Time: Initial = 6 Minutes
- Fluid Capacity: 0.345 gallons (1.3 liters)
- Fluid Consumption: 0.115 oz/min (3.4 ml/min)
CONTROL
- 3 DMX Channel Modes (1 / 3 / 5)
- Onboard LCD Touch Control Panel
- DMX-512 and RDM Protocol Support
- Optional MAGFLY Wireless DMX Transceiver
- Optional MAGRF Wireless and Wired Remotes
CONNECTIONS
- Locking 5pin XLR Connector In/Out
- IP65 True1 Power In
DIMENSIONS
- Length: 13.3 in. (338mm)
- Width: 6.30 in. (160mm)
- Height: 15.70 in. (400mm)
- Weight: 22.48 lbs. (10.2kg)
- Thermally Protected Heat Exchange
- Advanced HPA (high pressure air) Pump Technology
- Sealed Fluid Reservoir
- External Visual Fluid Level Detection
- Compact Light Weight Mobile Design
ELECTRICAL
- AC120V 60Hz
- 9A @ 120VAC(NFB)
- Max Power Consumption: 720W
- Maximum Ambient Temperature (Ta max) 104°F (40°C)
- Exterior Surface Temperature, Steady State: 122°F (50°C)
