The Elation Opto Branch 4 is a single rack space, 4-way distributor/booster with 3pin and 5pin XLR input and output jacks. This unit takes the incoming DMX signal and splits it to four (4) separate outputs that are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal, and the unit includes a link / terminate button for easy troubleshooting. We offer both individual unit rentals as well as rack mounted options. Please note that this unit is 120V only!

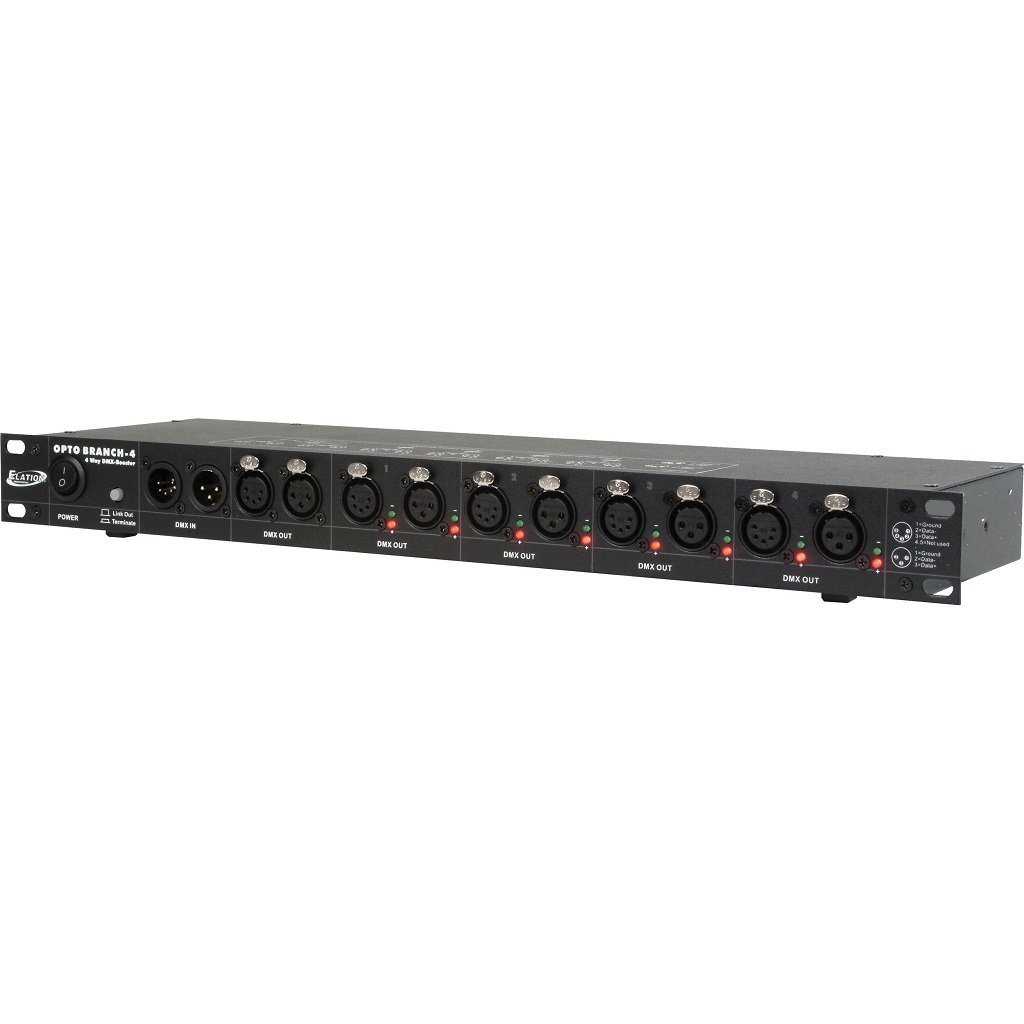

Elation Opto Branch 4
TECH SPECS
The Elation Opto Branch 4 sports the following features:
OVERVIEW
- 4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
- Link / Terminate Button for Easy Troubleshooting
- DMX Status LED Indicator
DIMENSIONS
- Size: 19” (482mm) x 5.7” (145mm) x 1.7” (44mm)
- Weight: 5.3 lbs. (2.4kg)
ELECTRICAL
- AC 120V – 60Hz
- NOT AUTO SWITCHING
CONNECTIONS
- Powercon In
- (1) 3pin + (1) 5pin Neutrik XLR Isolated Inputs
- (1) 3pin + (1) 5pin Neutrik XLR Passive Loop Output
- (4) 3pin + (4) 5pin Neutrik XLR Isolated Outputs
Elation Opto Branch 4 available for rental. Contact us for pricing!
