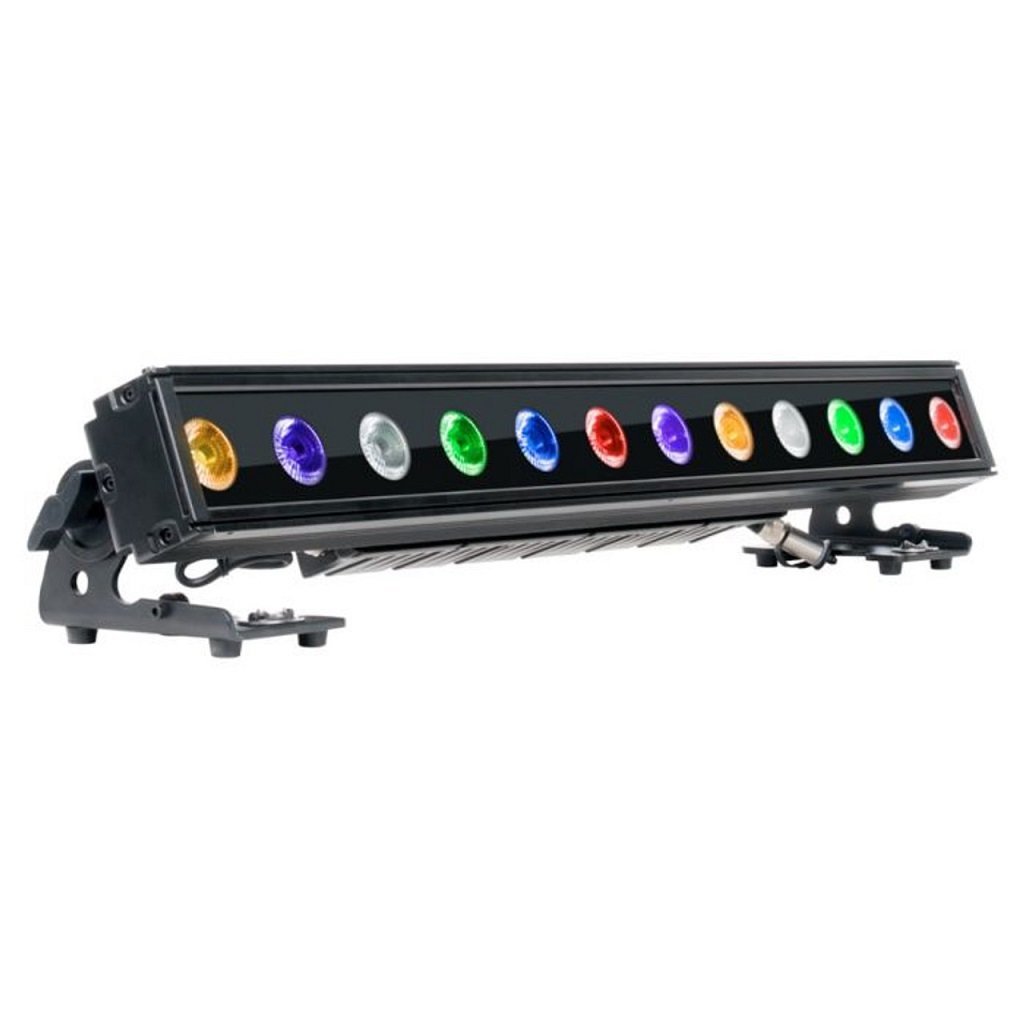

The IP65 rated Elation Sixbar 1000 IP features (12) 12W 6-IN-1 RGBAW+UV LEDs, 25° beam angle, pixel control, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, RDM (remote device management) protocol support, IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, dual adjustable rigging/floor stand brackets, glare shield and frost filter included, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
Elation Sixbar 1000 IP
TECH SPECS
The Elation Sixbar 1000 IP sports the following features:
FEATURES
- IP65 Rated
- 12 x 12W 6-in-1 RGBAW+UV LEDs
- 25° Beam Angle
- Pixel Control
- Rugged Die-Cast Aluminum Exterior
SOURCE
- (12) 12W 6-in-1 RGBAW+UV LEDs
- 100,000 Hour Average LED Life
PHOTOMETRIC DATA
- 7,149 LUX 664 FC @3.3’ (1m) (25° Full ON)
EFFECTS
- Pixel Control
- Strobe and Chase Effects
- Variable and Selectable Dimming Curves
CONTROL
- (8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
- 4 Button Touch Control Panel and LCD Menu Display
- RDM (Remote Device Management
CONNECTIONS
- IP Rated 5pin DMX In/Out
- IP65 Locking Power Cable In/Out
- With Wired Digital Communication Network
DIMENSIONS
- Length: 33.6” (853mm)
- Width: 5.6” (141.4mm)
- Vertical Height: 4.7” (120.5mm)
- Weight: 19.0 lbs. (8.6 kg)
ELECTRICAL
- AC 110-240V – 50/60Hz
- 145W Max Power Consumption
- Multiple Unit Power Linking
- 5°F to 113°F (-15°C to 45°C)
- UV Wavelength: 395nm
CERTIFICATIONS
- IP65 Waterproof
Elation Sixbar 1000 IP available for rental. Contact us for pricing!
