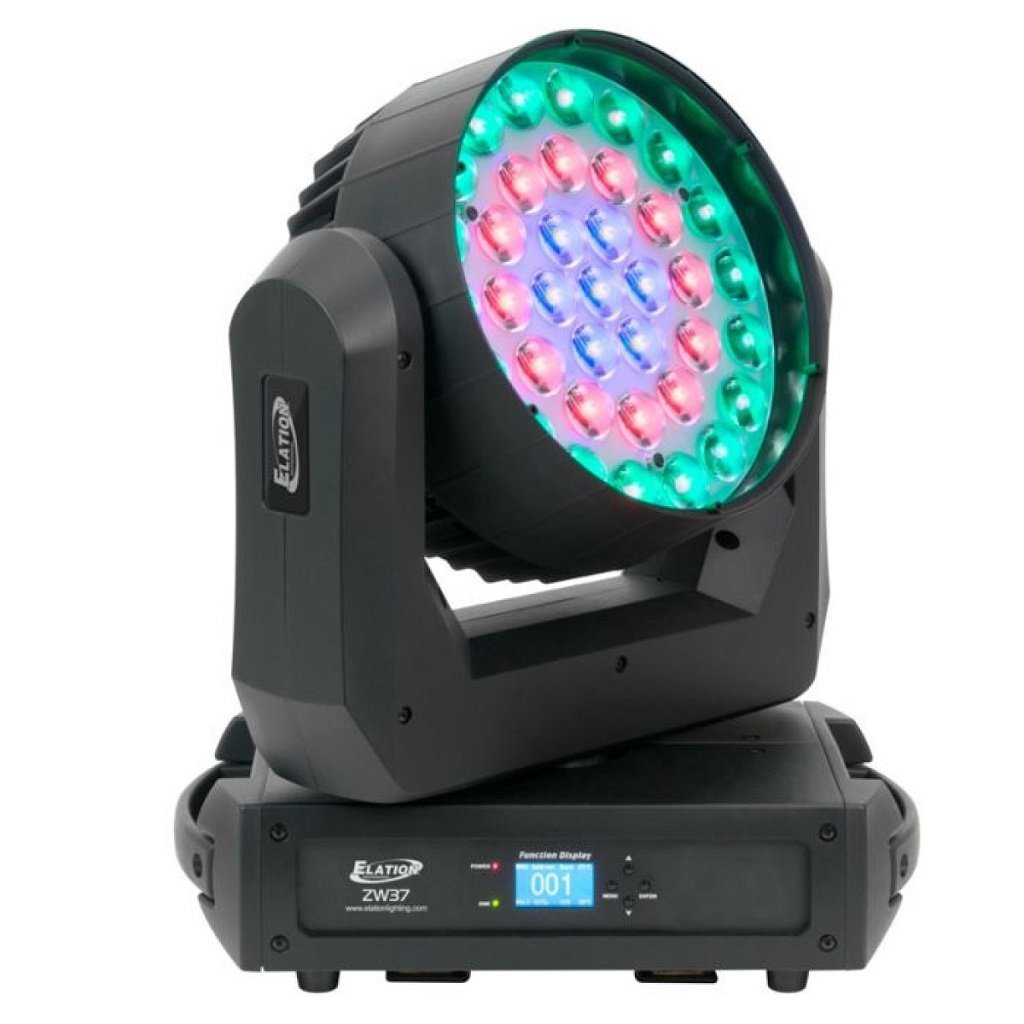

The Elation ZW37 is an LED moving head beam/wash effect luminaire featuring (37) 15W RGBW 4-in-1 LEDs, motorized 10° to 60° zoom, 64 color macros, fast and precise 540° pan and 220° tilt rotation, 16-bit fine resolution adjustable movement, strobe, and selectable dimming curve effects, 3/5pin XLR and powerCON in/out connections, (4) button control LCD menu display, 715W max power consumption, and a multi-voltage universal auto switching power supply (100-230v).
Elation ZW37 LED Wash
TECH SPECS
The Elation ZW37 LED Wash sports the following features:
SOURCE
- (37) 15W RGBW 4-in-1 LEDs
- 50,000 Hour Average LED Life
EFFECTS
- (64) Color Macros
- Motorized Zoom: 10° – 60°
- Electronic Dimming: 0% – 100%
- Strobe and Selectable Dimming Curves
COLOR
- RGBW Color Mixing
CONTROL
- (3) DMX Channel Modes (14 / 22 / 42)
- 4 Button Touch Control Panel
- Pan: 540° / Tilt: 220°
- Pan/Tilt Inverse Mode
- 180° Reversible LCD Menu Display
- 16-Bit Fine Resolution Adjustable Movement
CONNECTIONS
- 3pin/5pin DMX In/Out
- powerCON Power In/Out
- Power Link Up To (3) Units at 120V (6) Units at 230V
DIMENSIONS
- Length: 16.9″ (430mm)
- Width: 12.0″ (304mm)
- Vertical Height: 20.2″ (512mm)
- Weight: 43.0 lbs. (19.5 kg)
ELECTRICAL
- AC 100-230V – 50/60Hz
- 715W Max Power Consumption
- -4°F (-20°C) to 104°F (40°C)
CERTIFICATIONS
- CE | RoHs | IP20
Elation ZW37 LED Wash available for rental. Contact us for pricing!
