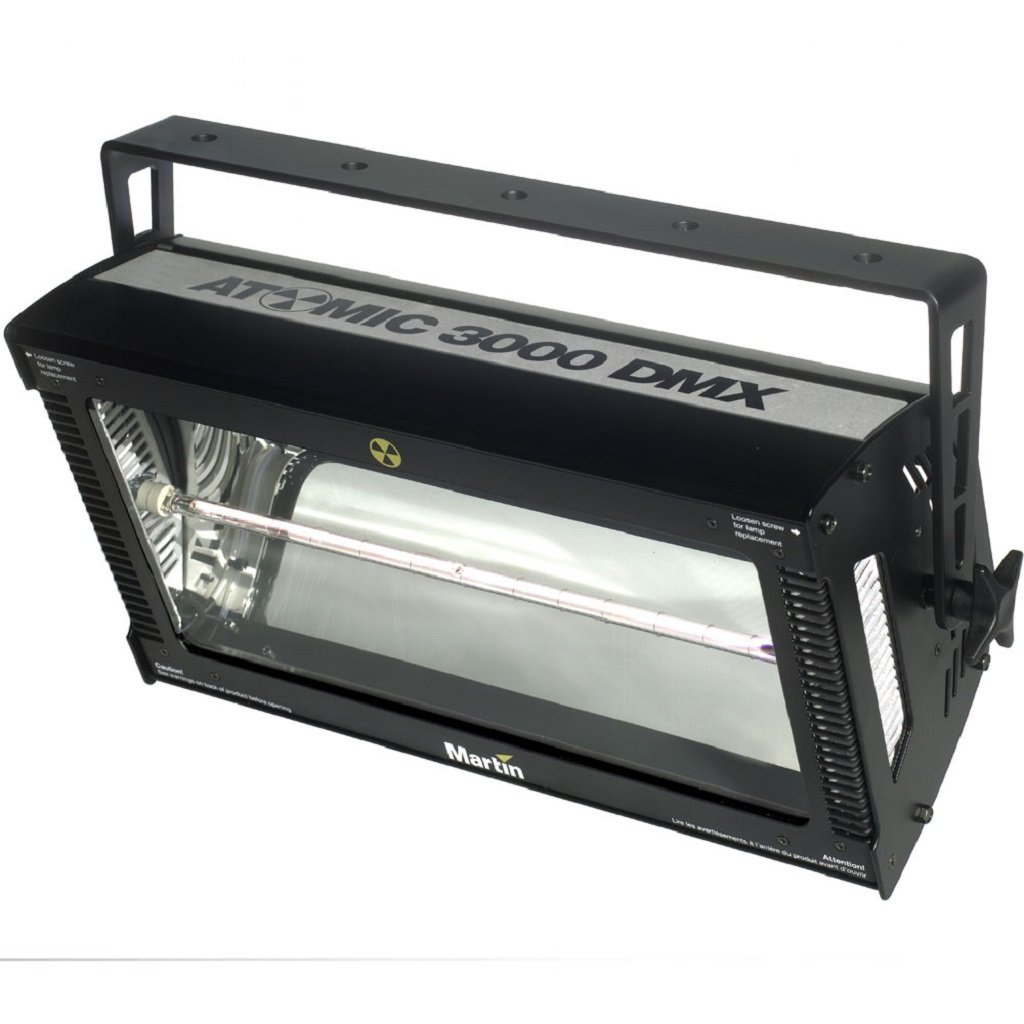

The Martin Atomic 3000 sports the following features:

SOURCE

• Type: Xenon discharge
• Approved lamps: MAX-15 Xenon (200-240 V power), MAX-7 Xenon (100-120 V power)

EFFECTS

• Variable strobe: 0 – 650 ms (50 Hz supply), or 0 – 530 ms (60 Hz supply)
• Strobe rate: 0 – 25 flashes/second (50 Hz supply), 0 – 30 flashes/second (60 Hz supply)
• Blinder effect: Continuous with auto fade
• Strobe intensity: Blackout – maximum
• Special effects: Ramp up, ramp down, ramp up-down, random flash, lightning, spikes, blinder, single flash

CONTROL

• Control options: DMX, stand-alone, multi-fixture chase (with Detonator remote), MC-1
• DMX channels: 1, 3, and 4 channel modes
• Stand-alone control: Via N.O. or N.C. SPST switch
• Stand-alone options: Selectable flash rate or blinder effect
• Setting and addressing: DIP switch DMX
• Compliance: USITT DMX512/1990 Receiver: RS-485

CONNECTIONS

• Power connection: 1.5 m (4.9 ft.) cable tail, 14 AWG
• DMX data in/out: 3-pin and 5-pin XLR sockets

DIMENSIONS

• Length: 425 mm (16.7 in.) without bracket
• Width: 245 mm (9.6 in.) without bracket Height: 240 mm (9.4 in.) without bracket Weight: 7.5 kg (16.5 lbs.) without bracket

ELECTRICAL

• 200-240 V nominal, 50/60 Hz Peak current consumption: 33 A Typical current consumption (MAX-15, high power mode): 8 A Main fuse (all AC power voltages): 20 AT (slow blow), 250 V Power supply unit: 2

THERMAL

• Maximum ambient temperature (Ta max.): 40°C (104°F)
• Minimum ambient temperature (Ta min.): 5°C (41°F)
• Maximum lamp socket temperature: 120°C (248°F)

Martin Atomic 3000 available for rental. Contact us for pricing!
