The Obsidian Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.

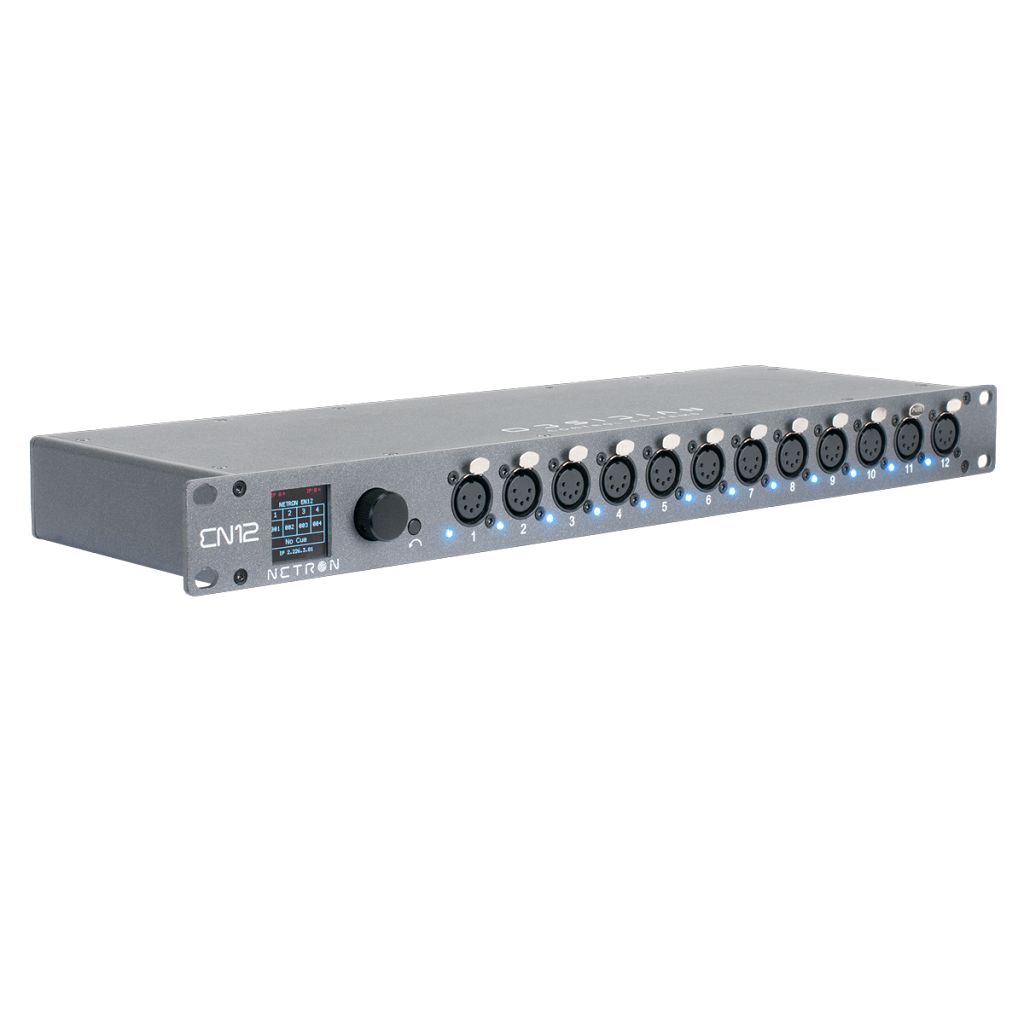

Obsidian Netron EN12
TECH SPECS
The Obsidian Netron EN12 sports the following features:
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or POE powered
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Customizable routing and merging options
- Remote configuration via internal webpage
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
CONNECTIONS
- Front Panel: (12) XLR-5 DMX/RDM optically isolated ports. Ports are bidirectional for DMX In and Out.
- Back Panel: (2) Locking RJ45 Ethernet port. (10) Contact closures (terminal block). Locking Power in/out via True1
ELECTRICAL
- 100-240V nominal, 50/60Hz
- POE 802.3af
- Power Consumption: 9W
DIMENSIONS
- Length: 482.5mm / 19″
- Width: 146mm/5.7″
- Height: 44mm/1.7″
- Weight: 1.82kg/4lbs
Obsidian Netron En12 available for rental. Contact us for pricing!
