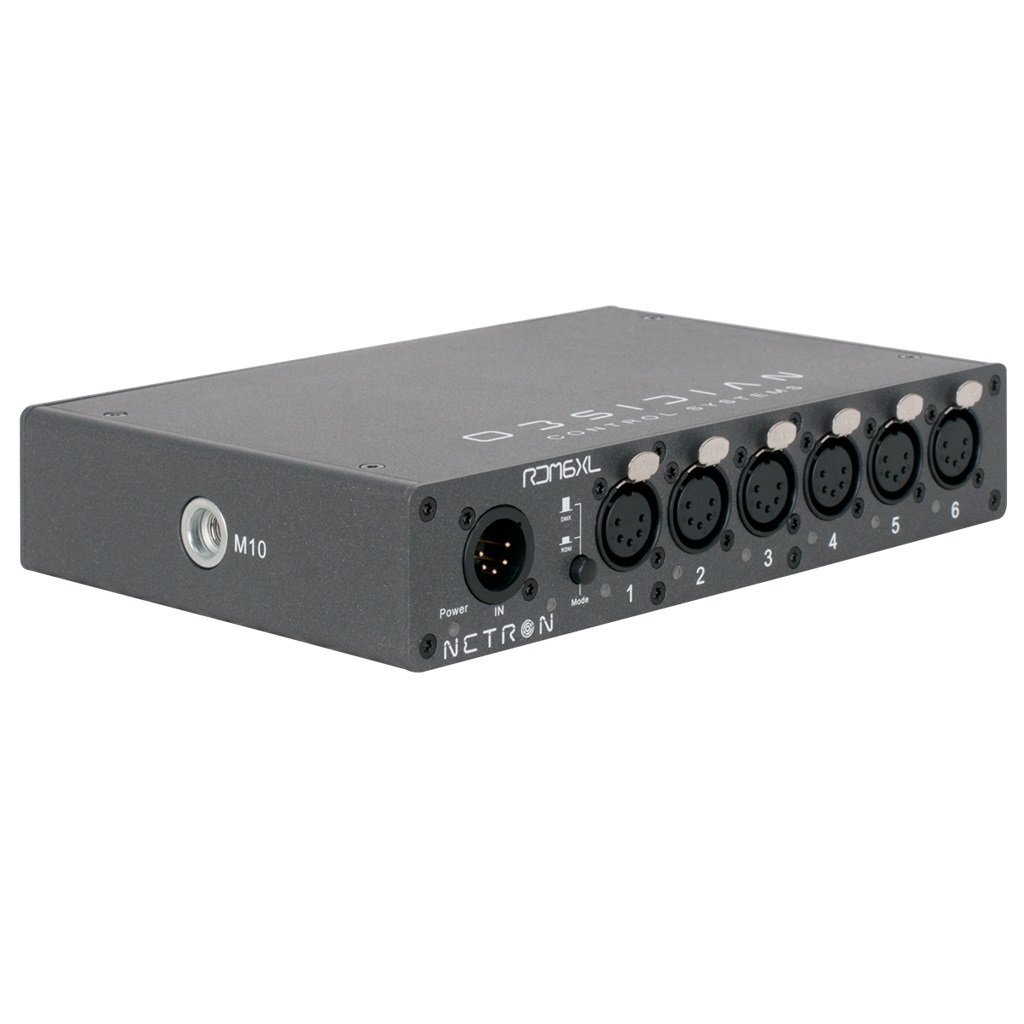

The Obsidian Netron RDM 6XL is a rugged and compact DMX/RDM Opto Splitter. Designed for live production and installations, it features six opto-isolated XLR-5 outputs and flexible mounting options to cover any situation.
Obsidian Netron RDM 6XL
TECH SPECS
The Obsidian Netron RDM 6XL sports the following features:
- (6) XLR 5pin outputs
- DMX and RDM compliant
- Optically isolated ports
- Power / DMX Through connectors
- Powder-coated aluminum ½ rack housing
DIMENSIONS
- Length: 215 mm (8.5 in.)
- Width: 139 mm (5.5 in.)
- Height: 42 mm (1.65 in.)
- Weight: 1 kg (2.2 lbs)
CONNECTIONS
- Front Panel: (6) 5pin Opto-Isolated DMX Outputs. RDM Enable
- Back Panel: 5pin DMX Input (parallel with front). 5pin DMX Through with Terminate toggle button
- Locking True1 power pass through
ELECTRICAL
- Auto-switching 100-240V nominal, 50/60 Hz, 10W
ACCESSORIES
- Truss mounting via optional clamp
Obsidian Netron RDM 6XL available for rental. Contact us for pricing!
