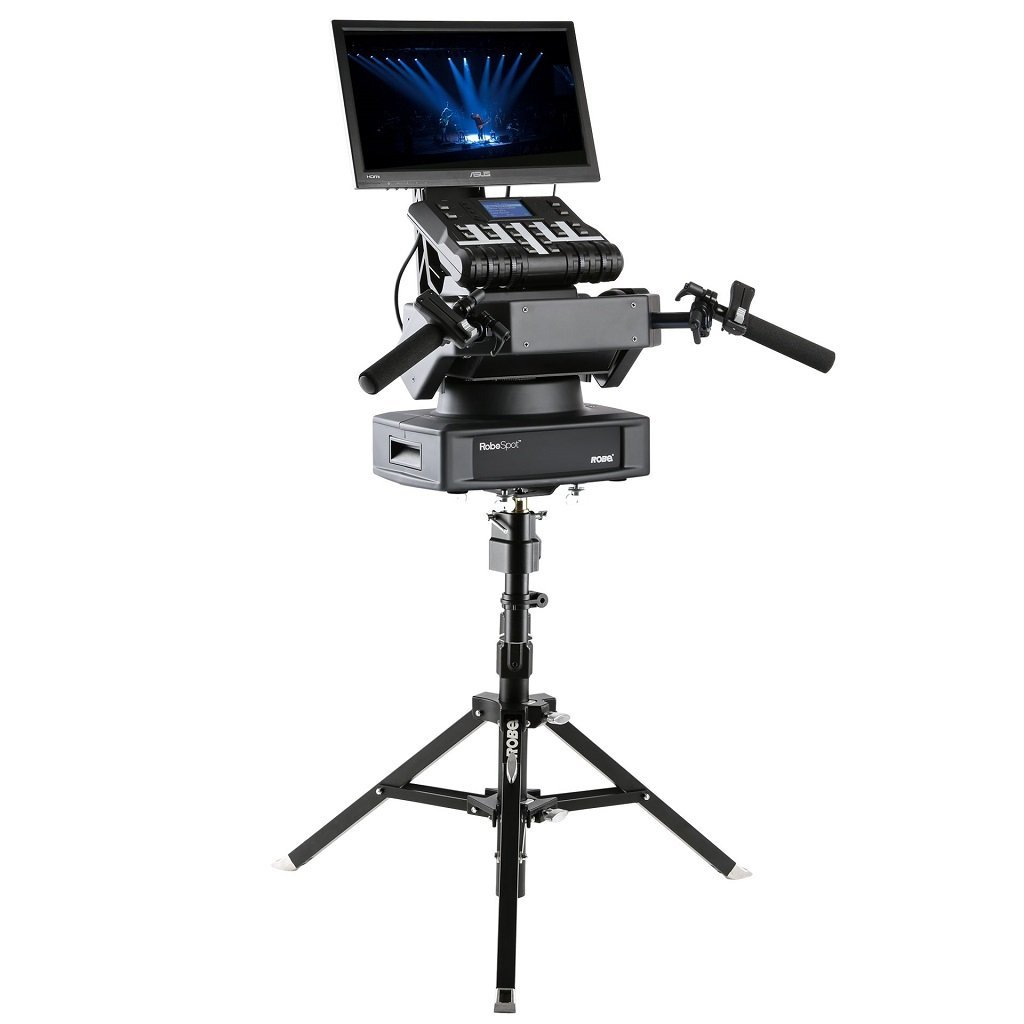

Robe RoboSpot Base Station

Introducing the revolutionary Robe RoboSpot follow spot system, a device that allows follow spot operators to remotely control up to 12 fixtures simultaneously without the safety concerns and impracticality of placing personnel at the top venues such as stadiums, indoor arenas, concert halls, theaters, TV and film sets. Stunning visual displays are now possible with as many as 12 perfectly synchronized fixtures following a performer across the stage.

With the Robe RoboSpot follow spot system it is no longer necessary to send operators into the rafters of venues to operate heavy and cumbersome traditional follow spot fixtures that take up valuable space in the world’s live entertainment venues. Operators can now safely control multiple fixtures such as the BMFL range of products (exc. BMFL Wash), iESPRITE, ESPRITE, ESPRITE FS, iFORTE, iFORTE FS, iFORTE LTX, iFORTE LTX FS, FORTE, FORTE FS, T1 Profile, T1 Profile FS, T2 Profile, T2 Profile FS, DL7S, DL4S, iSpiider, iPointe65, iPointe, MegaPointe, Pointe, iPAINTE, PAINTE, PAINTE Spot, SPOTE, CUETE, ProMotion, Viva CMY, SilverScan, Tarrantula, Spiider, LEDBeam 150, LEDBeam 350, iBeam 350, MMX WashBeam and MMX Blade from any location within the venue, reducing set-up times and operating costs.

The Robe RoboSpot system features a BaseStation with a large 15.6-inch HD touch screen for the operator to observe the performance from a “first person” viewpoint and a full range of hand controls for operating the fixtures such as pan, tilt, intensity, focus, faders and many others, all of which are fully customizable for the operator’s benefit. The screen receives the live video feed from the RoboSpot MotionCamera or from the fixture-mounted Robe RoboSpot camera and the operator’s commands are instantly transferred to the luminaires via DMX control with no lag for perfect motion tracking across the stage.

Extra controls are available through the touch screen display as well as four programmable jog-wheels with an additional 10 fully configurable buttons for a truly customized user experience. The remote lighting desk still retains control of the internal features of the fixtures such as light intensity and color. All these features combine to make Robe RoboSpot an innovative follow spot system.

TECH SPECS

The Robe RoboSpot Base Station sports the following features:

  • 15.6″ monitor
  • QVGA Robe touch screen with battery backup
  • 4 control jog-wheels
  • 10 preset buttons with a direct access of the pre-programmed features
  • Activation button
  • Pan & Tilt freeze buttons
  • 2 faders mounted on the handles with direct control of the key features 0-100% (for example dimmer and iris), assignable to any fixture properties (focus, zoom, frost, etc)
  • Manual movement control with position indication on the screen
  • User setting of controllable attributes
  • Saving and uploading of custom settings
  • Compatible with the Robe BMFL FollowSpot / FollowSpot LT, BMFL Spot, BMFL Blade, BMFL WashBeam, BMFL WashBeam EV, ESPRITE, ESPRITE FS, iESPRITE, FORTE, FORTE FS, iFORTE, iFORTE FS, iFORTE LTX WB, iFORTE LTX FS, TX1 PosiProfile, T1 Profile, T1 Profile FS, T2 Profile, T2 Profile FS, DL7S Profile™, DL4S Profile, iSpiider, iPointe65, iPointe, MegaPointe, Pointe, SPOTE, CUETE, PAINTE, PAINTE SPOT, iPAINTE, ProMotion, Viva CMY, SilverScan, Tarrantula, Spiider, LEDBeam 150, LEDBeam 350, iBeam 350, MMX WashBeam, MMX Blade, when the RoboSpot MotionCamera is connected to the RoboSpot BaseStation
  • One RoboSpot can control up to 12 fixtures

CONTROL

  • Display: QVGA Robe touch screen with battery backup
  • Movement control: manual

THERMAL

  • Maximum ambient temperature: 40°C (104°F)
  • Minimum operating temperature: 0°C (32°F)

ELECTRICAL/CONNECTIONS

  • Power supply: Electronic auto-ranging
  • Input voltage range: 100-240 V, 50/60 Hz
  • Power consumption: 15 W
  • Power in connector: Neutrik powerCON TRUE1
  • DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
  • Ethernet port in/out: RJ45

DIMENSIONS

  • Height: 606 mm (23.8″)
  • Width: 693 mm (27.3″)
  • Depth: 472 mm (18.6″)
  • Weight: 16.5 kg (36.4 lbs)

RIGGING

  • Mounting positions: on tripod (supplied with the product)

Robe RoboSpot Base Station available for rental. Contact us for pricing!
