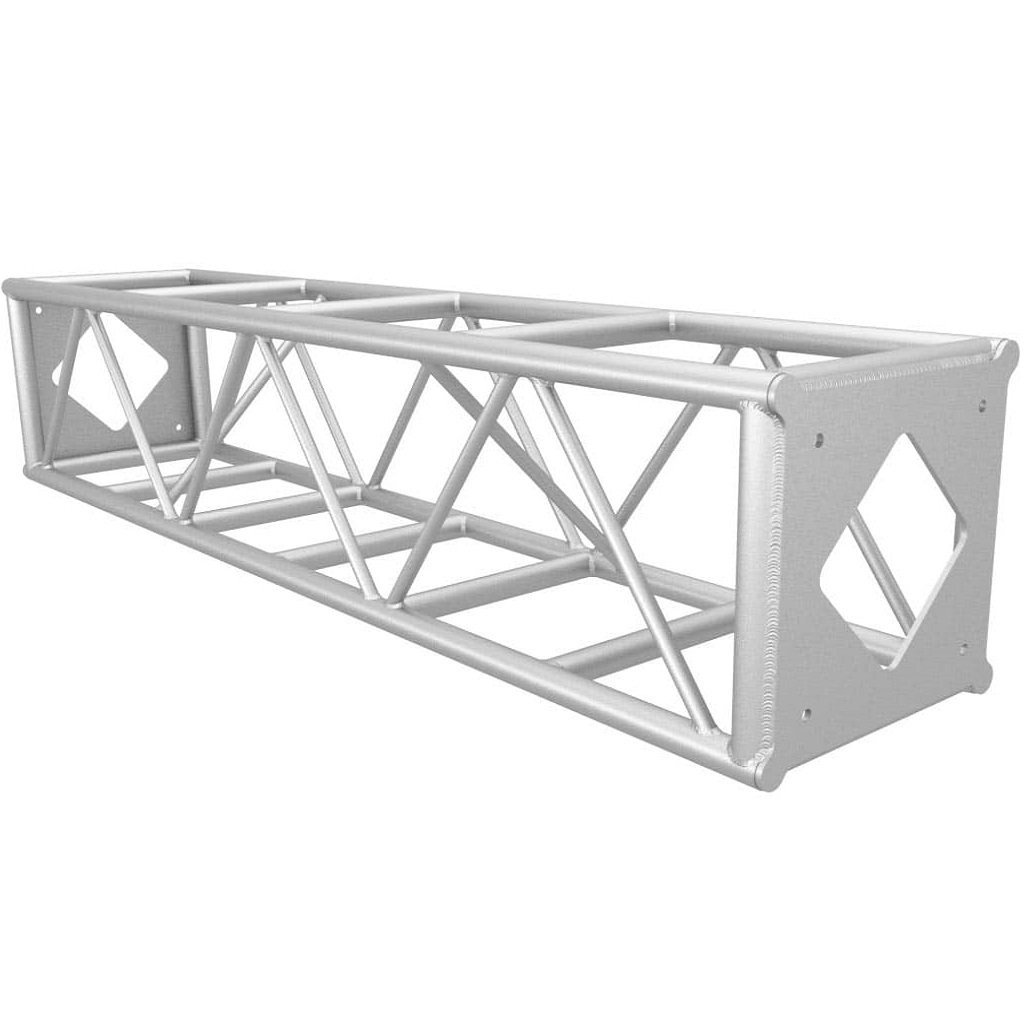

XSF 20.5″ x 20.5″ Protective Bolt Plate Utility Truss
XSF 20.5″ x 20.5″ Truss
TECH SPECS
The XSF 20.5″ Protective Bolt Plate Utility Truss sports the following features:
SIZE
- 20.5″ x 20.5″
DIMENSIONS
- Available lengths: 10′
- Main chords are 2″ OD x 1/8″ aluminum
- Diagonals are 1″ OD x 1/8″ aluminum
LOAD TABLE
| Span (ft) | UDL (plf) | CPL (lbs) | 3PL (lbs) | 4PL (lbs) |
| 10 | 982 | 7885 | 4910 | 3275 |
| 20 | 390 | 3875 | 2910 | 1940 |
| 30 | 165 | 2510 | 1885 | 1255 |
| 40 | 90 | 1810 | 1355 | 900 |
| 50 | 55 | 1365 | 1025 | 685 |
XSF Protective Bolt Plate Utility Truss – 20.5″ available for rental. Contact us for pricing!
